2014 GMC Sierra 1500 torque converter replacement cost

What a torque converter replacement is like on the 2014 GMC Sierra 1500

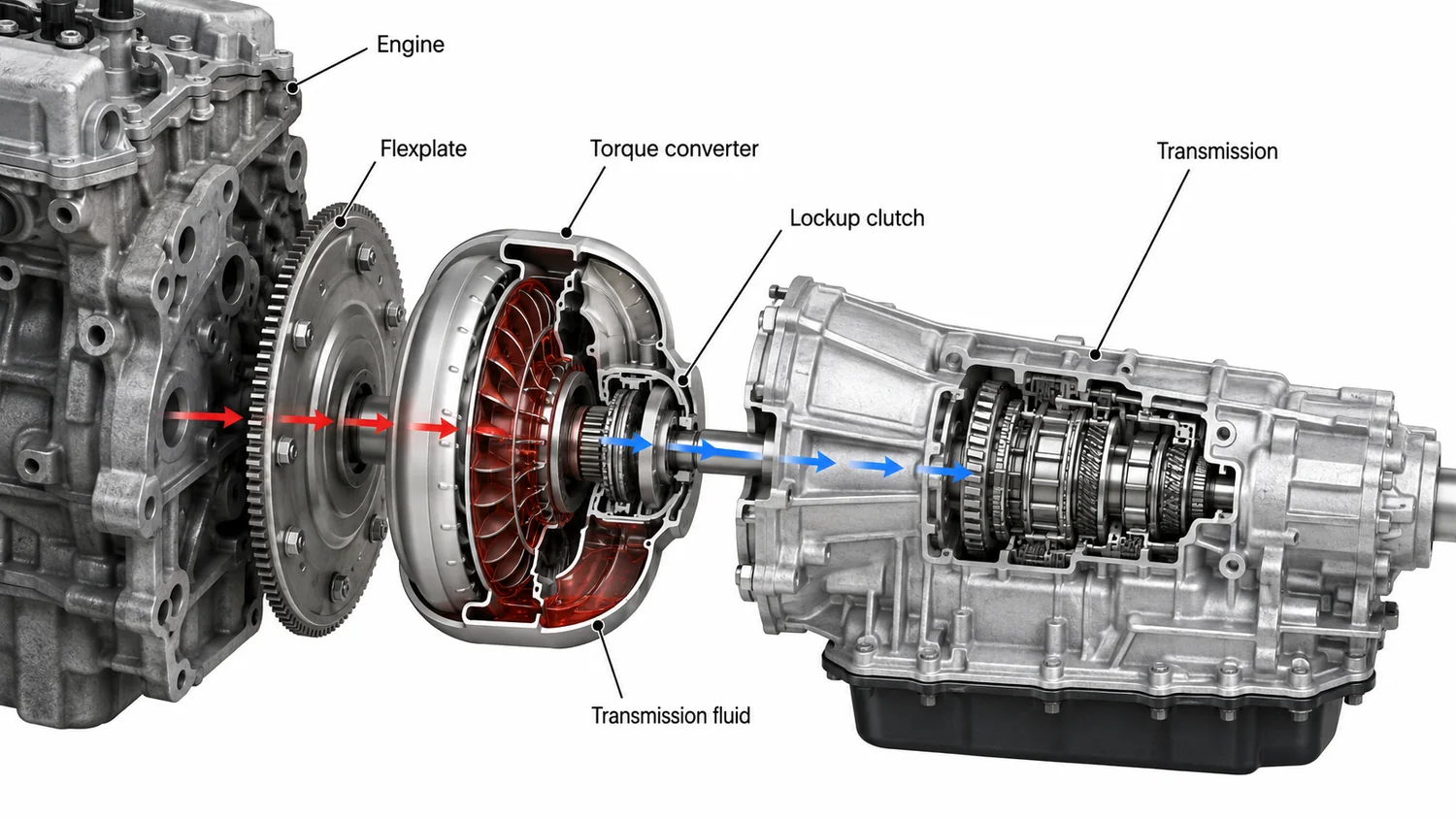

On a 2014 Sierra 1500 the torque converter lives inside the bellhousing between the engine and the 6L80 six speed, so there is no shortcut: the whole transmission has to come out of the truck to swap it. That means dropping the rear driveshaft, exhaust hardware, the transmission crossmember, cooler lines and wiring, then lowering the transmission on a jack, and on a 4x4 the transfer case and front driveshaft come out too, which is why 4WD quotes run noticeably higher than 2WD. The part itself is only a few hundred dollars; most of the bill is the six to eight hours of labor to reach it, and real world quotes on these trucks run from about $1,000 on the low end to $2,000 plus when a shop pairs a billet converter with valve body work.

Be precise about which transmission you have: every 2014 Sierra 1500, whether 4.3, 5.3 or 6.2, uses the 6L80 six speed (RPO MYC). The infamous 8 speed shudder saga belongs to the 8L90 that arrived in 2015 and later trucks, but the 6L80 has its own well documented shudder problem that GM addressed in bulletin 20-NA-142, Shudder/Surging While Driving, which blames depleted transmission fluid additives that regulate converter clutch slip. That bulletin's truck coverage formally starts at model year 2015, but the 2014 carries the identical MYC transmission and shops treat it the same way. GM's own repair logic in the bulletin is telling: a multi pass Dexron VI fluid exchange only for low mileage trucks, and torque converter plus filter replacement for anything over 30,000 miles or any truck with metal debris in the pan.

The classic symptom on these trucks is a rumble strip vibration at light throttle around 25 to 50 mph, right when the converter clutch locks, and it often shows first with Active Fuel Management running in V4 mode. Owners report it anywhere from around 60,000 miles to well past 150,000; one documented 2014 Sierra case hit converter shudder at 157,000 miles. The root cause is that the 6L80 applies its converter clutch with constant controlled slip, which slowly wears the clutch lining until the piston contacts the front cover metal to metal and starts shedding debris into the fluid. A shop can confirm it with a scan tool, since TCC slip should be near zero when locked, and slip readings in the hundreds of RPM during a shudder episode mean the converter itself is done rather than just the fluid.

Whether a converter only fix is enough comes down to what drains out of the pan. If shudder is the only symptom, the fluid is still red and the pan is clean, a new converter with a fresh filter and Dexron VI is a legitimate repair and far cheaper than a rebuild. But converter debris in a 6L80 acts like grinding compound on the aluminum pump, and rebuilders regularly find scored pumps and bellhousings behind failed converters, so if your fluid is dark and glittery a shop recommending pump inspection or a full rebuild is being straight with you, not upselling. It is also fair for a shop to suggest an upgraded converter, because the factory design wears the same way again under the same constant slip lockup strategy.

The factory replacement is real and checkable: ACDelco GM Original Equipment torque converter 24291284 is the listed converter for the 2014 Sierra 1500 with the 5.3 and 6L80, with catalog coverage spanning 2014 to 2021 GM trucks. Expect the invoice to also include a transmission filter, several quarts of Dexron VI, a proper fluid level set, and a relearn procedure after installation, all of which the 6L80 needs for the repair to hold. If a quote lists a converter far cheaper than the ACDelco unit, ask what brand it is, since remanufactured quality on this transmission varies widely.

Estimate note: these are researched independent-shop ranges, not a guaranteed quote. The only exact number is one from a shop that has seen your car.
